Discrete Adjoint OpenFOAM
Description
We develop a discrete adjoint version of OpenFOAM (currently based on OpenFOAM.com v2212). It can be applied to topology and shape optimization cases (i.e. for ductd flows or external aerodynamics).
A wide range of other use-cases can also be tackled due to the flexibility of the discrete adjoint approach. The following features are available:
- Full first order adjoint of all OpenFOAM main libraries
- Discrete adjoint versions of selected applications (e.g. discreteAdjointSimpleFoam)
- Equidistant or Revolve Checkpointing
- Reverse accumulation and Piggy-back optimization for fixed point iterations
- Symbolically differentiated linear solvers
- Parallelization with adjoint-MPI (AMPI)
- Tangent Linear and Finite Difference Implementations for verification
- Experimental second order derivatives support
The source is available upon request. Please drop us a mail and we'll grant you access to the repository.
A work in progress wiki with usage instructions can be found here.

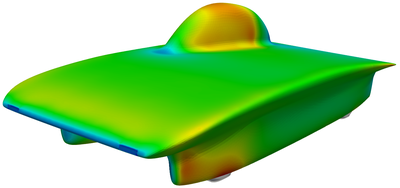

Shape Sensitivities of Sonnenwagen / Image Credit: Lennart Moltrecht, sonnenwagen.org
Publications
- 2013 A Discrete Adjoint Model for OpenFOAM Proceedings of ICCS 2013
- 2014 A Discrete Adjoint Version of an Unsteady Incompressible Solver for OpenFOAM using Algorithmic Differentiation Eccomas 2014
- 2015 MPI-Parallel Discrete Adjoint OpenFOAM Proceedings of ICCS 2015
- 2018 SIMPLE adjoint message passing Optimization Methods and Software
- 2019 Discrete Adjoint Optimization with OpenFOAM
- 2021 Discrete Adjoint Approaches for CHT Applications in OpenFOAM, Advances in Evolutionary and Deterministic Methods for Design, Optimization and Control in Engineering and Sciences
Workshop Materials
- Introduction to Discrete Adjoint OpenFOAM available here
- Workshop Materials from OpenFOAM Workshop 2019: slides handout
Authors
Contact
Disclaimer
This offering is not approved or endorsed by OpenCFD Limited, producer and distributor of the OpenFOAM software and owner of the OPENFOAM® and OpenCFD® trade marks.
